MatrixBrute is an outstanding analog synthesizer. Offering three Brute oscillators, a Steiner-Parker filter and a ladder filter, five analog effects, and the incredible modulation matrix. It is a massive sonic beast.
HOME / PRODUCTS / ARTURIA / HARDWARE SYNTHESIZERS / MATRIX BRUTE
ANALOG
AVANT-GARDE
MATRIXBRUTE IS ARGUABLY THE MOST POWERFUL ANALOG MONOPHONIC SYNTHESIZER EVER ! AS FLEXIBLE AS A MODULAR SYSTEM BUT OFFERING PRESETS, MATRIXBRUTE IS A DREAM MACHINE FOR EVERYONE INTERESTED IN CREATING A SOUND PALETTE OF THEIR OWN.
MATRIXBRUTE
HARDWARE SYNTHESIZERS
POWER BEYOND THE MATRIX
OFFERING A AUDIOSIGNAL PATH THAT IS IS 100% ANALOGUE, MATRIXBRUTE ALSO FEATURES TRUE ANALOGUE EFFECTS. THE MATRIXBRUTE GIVES YOU THE SONIC QUALITY AND POWER OF A VAST MODULAR SYNTHESIZER BUT WITH THE FLEXIBILITY OF PRESETS ALONG WITH A GREAT ARPEGGIATOR AND AN ADVANCED SEQUENCER.
MatrixBrute is a truly empowering instrument!! It offers tons of connections so you can work in any set-up. It brings a quality keybed and a solid chassis.No endless menus or screens to navigate or multi-function buttons to remember. Forget about connectivity issues. This is you in control. This is you inventing sounds. This is analog avant- garde.
HANDS-ON HEAVEN
FORGET ABOUT TINY LCD SCREENS, BEING LOST IN MENUS AND SUB-MENUS, AND TRYING TO REMEMBER DOUBLE FUNCTIONS AND COMPLEX PROCEDURES. MATRIXBRUTE BRINGS BACK THE FUN AND THE IMMEDIATE HANDS-ON EXPERIENCE OF SYNTHESIS.
When you want things to shake, grab the Sub Osc slider and bring it on. When you want it to sizzle, grab the filter knob and open it up. And when it’s time to unleash the beast, grab the Brute Factor™ knob and turn it loose! It’s that easy.
SOUND BEYOND THE POWER
THE HEART OF THE MATRIXBRUTE IS ITS UNIQUE MODULATION MATRIX THAT ALLOWS YOU TO CREATE YOUR OWN ROUTINGS. YOU CAN INVENT A SOUND PALETTE OF YOUR OWN THAT WILL BE SURE TO BE HEARD IN ANY MIX !
The matrix can also be used to recall your presets. So go on stage, and select any of the 256 presets instantly! No menus or awkward selection screensscreens, everything is at your fingertips.
As if it was not enough, the matrix is also made to program and play sequences. This is no ordinary step-sequencer. With its ability to also be used as a modulation source, sounds evolve in melody and texture, just the way you want.
DETAILS
1. THREE ANALOG OSCILLATORS
Sawtooth, Pulse, Triangle, waves with the unique waveshapers that have become the trademark of the 'Brute' sound. There is also a sub-oscillator on each of the two Brute oscillators.
3. NOISE GENERATOR
Noise generator with White, Pink, Red and Blue noise types. The most versatile on the market.
5. PERFORMANCE CONTROLS
Pitch bend and mod wheels and 4 Macro encoders which can be assigned to any of the modulation destinations for instant hands on performance playing.
7. THREE LFO’S
Two standalone LFO’s with 7 waveforms and trigger modes allow for complex modulations. The combination VCO/LFO adds a 3rd LFO in the system.
9. STEINER-PARKER FILTER
We have upgraded our Steiner Parker filter to support both 12db per octave and 24db per octave slopes as well as a DRIVE control for making thicker sounds. The 4 modes, Low pass, band pass, high pass, and notch allow for a vast array of sound making possibilites.
2. COMBINATION VCO/LFO OSCILLATOR
The third Osciallator can be used for both audio signals and LFO modulation at the same time. You do not have to choose either operation here so you can always have that big 3 oscillator sound.
4. AUDIO MOD
The AUDIO MOD section allows for complex oscillator and filter FM possibilities bringing whole new tonalities to your sound.
6. VOICE MODES
Multiple keyboard modes for mono, paraphonic and duo-split modes. Split oscialltors for paraphonic mode or use the duo split mode to play a sequence while playing notes over the top of it.
8. MIXER
Mix and blend Oscillators 1, 2, 3, as well as the noise generator and EXTERNAL input sources. Route each mixer input to the filter of your choice using the FILTER assign buttons.
10. LADDER FILTER
We have included a traditional beefy Ladder filter with both 12db and 24db per octave slopes as well as Low Pass, High Pass & Band Pass modes and a Drive control. This filter design is known for making punchy bass and thick lead sounds.
11. FILTER ROUTING
The two filters can be patched in series or in parallel configurations.
12. 3 ENVELOPE GENERATORS
The two ADSR envelopes and the 3rd DADSR envelope give you plenty of sound sculpting tools.
13. 256 MEMORY LOCATIONS
Store and recall your favorite sounds at the touch of a button. You can organize, save and load new banks of sounds using the free MIDI Control Center editor application. We deliver MatrixBrute with 128 factory presets.
14. THE MATRIX
The matrix is the heart of Matrixbrute. It allows for complex modulation routing, step-sequencing and instant preset recall.Modulation Routing: You can assign any of 16 modulation sources to any of 16 mod destinations. 4 destinations are user programmable and can be seen in the e-ink display. Set amounts of each modulation routing using the data encoder.
Step Sequencer: The matrix can be used as a 64 step sequencer with separate STEP, ACCENT, SLIDE and MODULATION steps. Preset Recall: In Preset mode the matrix allows you to recall any of 256 presets at the touch of a button.
15. TRUE ANALOG EFFECTS
To enhance your sonic pleasure we have added an analog and Delay/ Chorus/ Flanger to the output. Choose from any of 5 operation modes. And YES! the controls in the analog effects can be set as modulation destinations in the Matrix.
16. SEQUENCER/ARPEGGIATOR CONTROLS
The sequencer and arpeggiator add to the playability of the Matrixbrute. Multiple modes of both the seq and arp allow for unlimited musical ideas to be realized.
17. KEYBOARD
The 49 note keyboard features both velocity and aftertouch for a musical feel with plenty of expression.

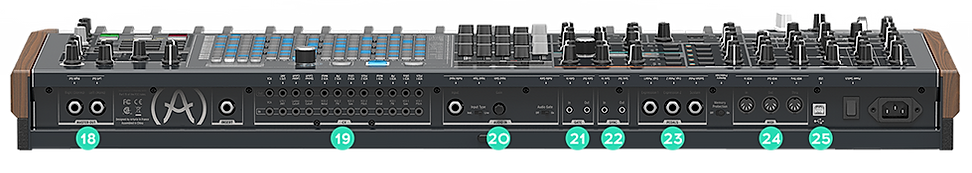

18. MASTER AUDIO OUTPUTS
Stereo ¼” jacks for your master audio outputs.
19. CONTROL VOLTAGE INTERFACING
12 CV Inputs and 12 CV Outputs allow the Matrixbrute to interface with your standard 1V per octave modular synth gear.
20. AUDIO INPUT
Line and instrument levels allow for adding an external oscillator from your favorite modular synth or processing a guitar or bass through the filters, VCA and analog effects.
The Gate inputs and outputs allow you to trigger external gear or trigger the internal envelopes remotely.
21. GATE I/O
22. SYNC IN AND OUT
This allows you to synchronize the MatrixBrute’s sequencer and arpeggiator with external devices.
Experssion and Sustain pedal inputs give you real-time control to expand on your expressive capabilities control.
23. PEDAL INPUTS
24. MIDI INTERFACING
Standard MIDI in, out and thru will connect you to both modern and vintage gear alike.
USB I/O allows you to interface to a computer DAW directly. This is also the link to use our free editor/librarian software provided for the MatrixBrute.
25. USB
MAIN FEATURES
-
Analog Matrix Synthesizer
-
256 Preset memory locations
-
2 Analog Exponential VCO’s:
-
Saw + UltraSaw, Square +Pulse width, Triangle + Metalizer, Sub
-
-
1 Analog Linear VCO/LFO
-
Saw, Square, Triangle, Sine waveforms; LFO time divisions; Key track
-
-
VCO 2>1 Hard Sync
-
Audio Mod:
-
VCO1>2 ; VCO1 < VCO3> VCO2 ; VCF 1 < VCO3> VCF 2 ; VCF1 < Noise> VCF2
-
-
Noise Generator:
-
White ; Pink ; Red ; Blue noise types
-
-
5 input Audio Mixer with Filter routing
-
Steiner Parker filter with 12+24 db per octave modes ; Drive ; Brute factor; Low Pass, High Pass, Band Pass, Notch
-
Ladder filter with 12+24 db per octave modes ; Drive ; Brute factor; Low Pass, High Pass, Band Pass
-
2 LFO’s
-
Sine, Tri, Square, Ramp, Saw, Random, S&H
-
-
3 Envelope Generators
-
2 Attack, Decay, Sustain, Release
-
1 Delay, Attack, Decay, Sustain, Release
-
-
External Audio In
-
16x16 Matrix modulation panel
-
64 step sequencer
-
STEP enable, Slide, Accent, Modulation
-
Save and recall sequence patterns on the fly
-
-
Analog Effects
-
Stereo delay, Delay, Flanger, Chorus, Analog Reverberator
-
-
Arpeggiator
-
12 CV / Gate Inputs/Outputs
-
Audio Input, Line or Instrument level
-
Stereo audio output
-
MIDI and USB I/O
-
Pedal inputs for Expression and Sustain
